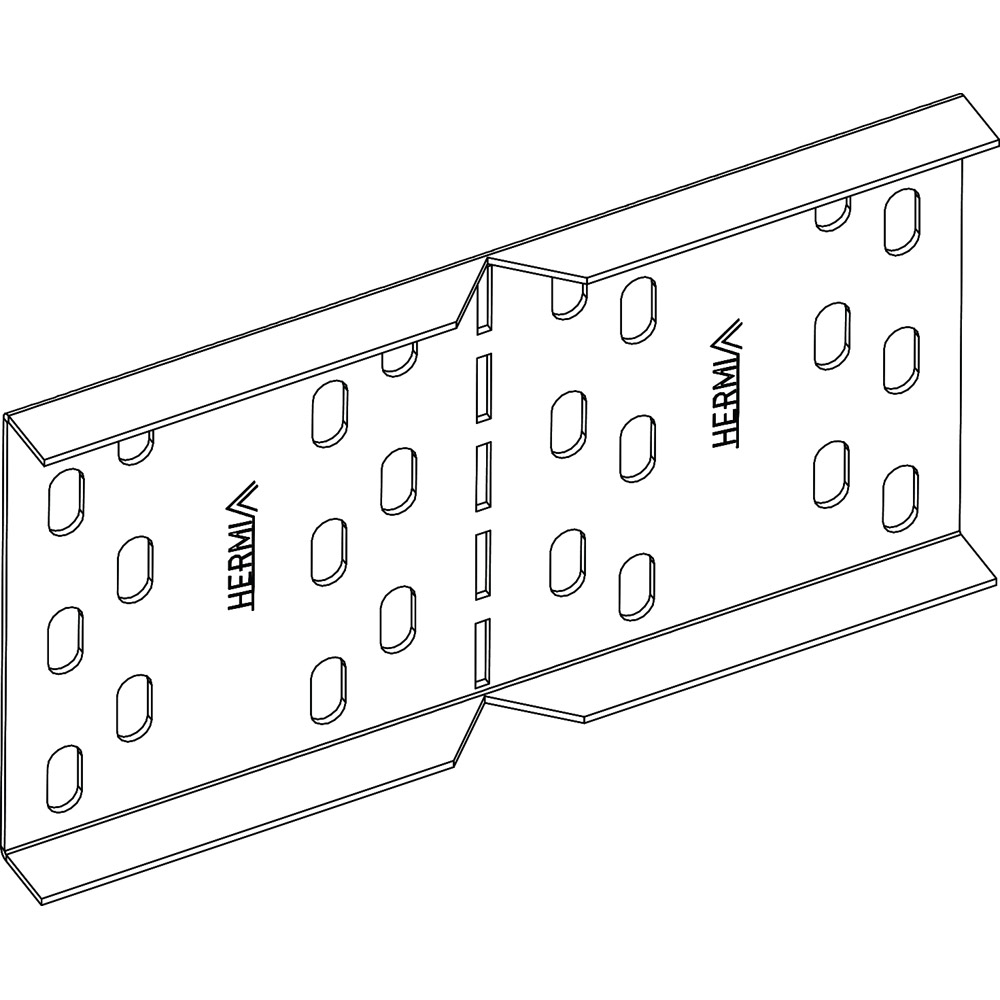

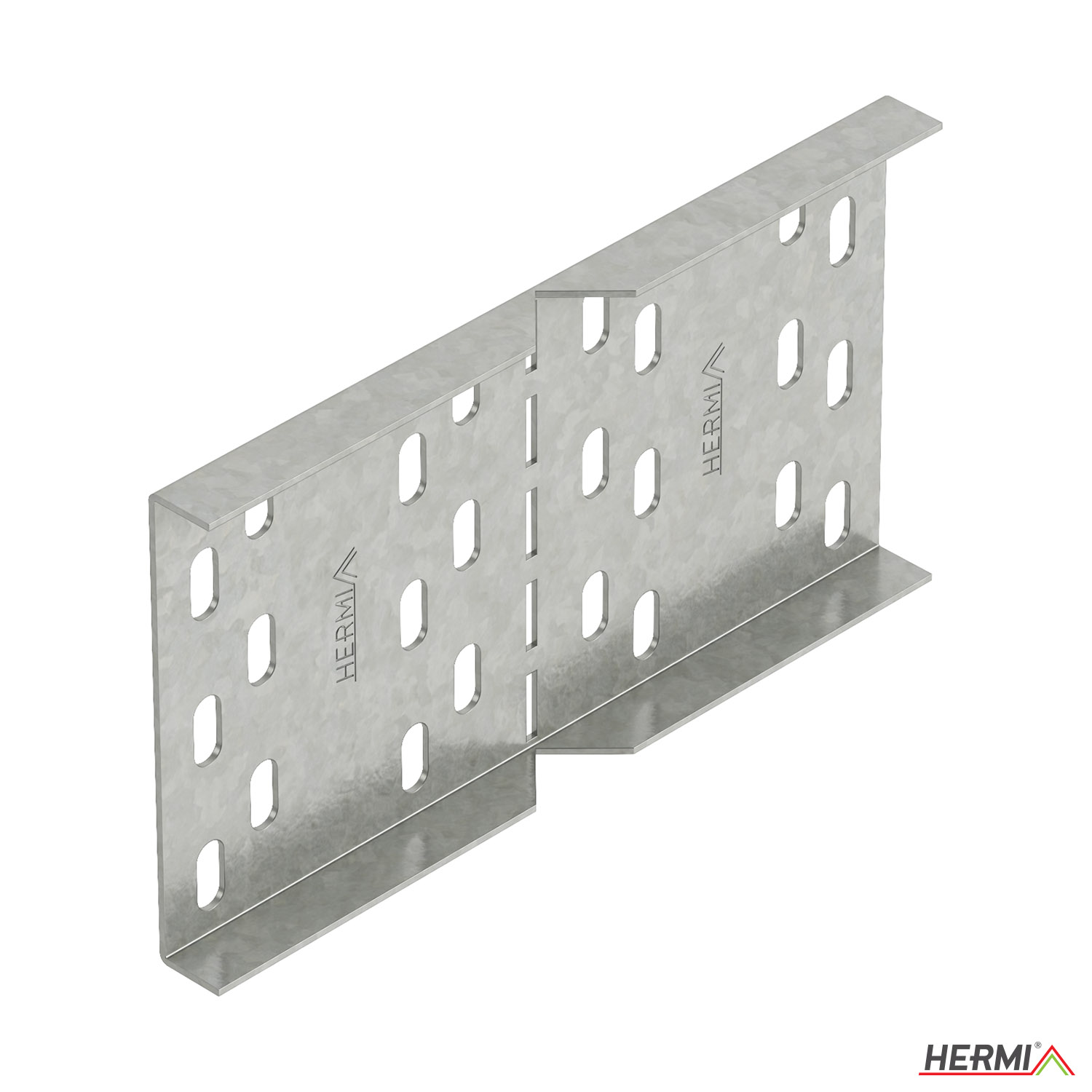

Für eine flexible Verbindung von Kabelleitern wird auf der Innenseite des Profils mit Schrauben PPKP M6x12 (8x) und Muttern PPKP M6 (8x) fixiert. Pro Verbindung sind 2 Stück PKL-GSH erforderlich.
Werkstoff | Stahl |
Länge | 190 mm |
Farbe | Other |
Ausführung | Length- and angle joint |
Oberfläche | Galvanic/electrolytic zinc plated |
Rostfreier Stahl, gebeizt | NEIN |
Geeignet für Funktionserhalt | No |
Suitable for wire mesh tray | no |
Suitable for cable ladder | yes |
Suitable for cable tray | no |
Type of connection | Screw connector |
Hinged joint horizontal | no |
Hinged joint vertical | yes, yes |
Suitable for cable management system width | 100-800 mm |
